Target App Type:
If you have used the Shortcuts in the worksheet
then, select the target application type to which Forms Data
Loader should map these shortcuts. Otherwise, you can leave
this field blank. For more info see
Shortcuts help.
Target Application Window
Select the target application window title from
the list. If your target window title is not showing make
sure that the target application window is running and
visible and click the adjacent "Refresh" button. If still you are not seeing the window title then
type in the target application window title name as it is in
the text box.
Range:
Select the range of cells you want to load. You
can load only highlighted cells or only cells from one
particular row to another row or you can load all the cells.
Step
by Step Loading
Click this check box if you are running the load
for the first time. When this option is selected then FDL
will show a dialog box after processing each cell. This is
very good option for testing loads when you select this

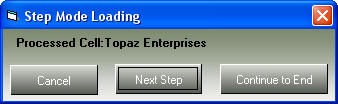

option FDL will show a dialog box as shown below after
loading each cell
Click Next Step to
proceed to the next step, or click "Continue to End"
button to continue loading without step by step mode
or click "Cancel" button to cancel loading.
Verify Data:
As Forms Data Loader
loads data into target application by sending keystrokes
many a times the load will go awry because of various
reasons like
- Missing some fields
in preparing the load or,
- Missing keystrokes
to move between the fields or
- The speed at which
target application process the data send to it. Like
for example you have to send the data "Acme
Constructions" to
the First
field and then send a "{TAB}"
keystroke to move to
Second field and
then send data "No
1.
Street"
in it.
When you run this load FDL will send the data
for the first field and then sends the "{TAB}"
keystroke and then send the data for the second
field . Now when the target application receives
the {TAB}
keystroke it is still processing the data entered
into the first field and ignores the {TAB} keystroke
and the data meant for second field is entered into
first field itself.
This can be avoided by
inserting time delays in between the cells. However,
inserting time delays makes the load run slower. To avoid
this FDL provides a feature to verify the data send to the
target application by checking the target application event
logfile provided the target application supports logging of
events and keystrokes send to it.
If the target application
supports logging of keystrokes then select the "Verify Data"
check box and entered the path and filename of the logfile
in which target application will be recording the
keystrokes.
Oracle Application Forms
support this feature. To enable this feature for
Oracle Application you have to first configure Oracle
Application Forms Server to record the events and keystrokes
in a log file and this logfile path and filename must be
entered in the textbox provided.
Enabling Oracle
Forms Server Recording Feature For Verifying Data
Step 1
To enable Forms for
recording you have to make changes to the Forms
Configuration file appsweb.cfg located in $OA_HTML/bin
directory. Make a backup of the file before editing it.
Open the Forms
Configuration file (appsweb.cfg) and enter the
following code at the end of the file as shown below
If
$OA_HTML/bin/appsweb_{$ORACLE_SID}_{$HOSTNAME}.cfg
also exist then edit this file also and make the same
changes as you have done in appsweb.cfg. It is always
better to make a backup before editing the file.
After making the changes
save the file.
Step 2.
Next, you have to edit
the ICX:Forms Launcher Profile setting. It will
already contain a value which is used to launch forms.
You have to append the "record=" option at the end of
the value as shown below
If Forms are running
in Unix:
Before Edit:
http://host.domainname:port/dev60cgi/f60cgi
After Edit
http://host.domainname:port/dev60cgi/f60cgi?record=myrecord.log
If Forms are running
in Windows:
Before Edit:
http://host.domainname:port/dev60cgi/ifcgi60.exe
After Edit
http://host.domainname:port/dev60cgi/ifcgi60.exe?record=myrecord.log
This will make forms
record all the keystrokes in the file "myrecord.log" in
the default location {$8.0.6_HOME}/forms60/log directory
in Unix and {$8.0.6_HOME/forms60/bin} directory in
Windows.
Note :
Edit the profile setting
at Site Level or Application Level or User Level
depending upon which session level you want to enable
recording. We recommend to turn on recording at user
level for the user who will be running the load.
In Apps 11i,
Forms are run in the application tier and not in client
desktop tier. Because of this ask your Apps DBA to place the Forms record
file in a directory in the server which is accessible by
both the forms server and the clients desktop. This can be
done by network file sharing or Samba Shares or any other
appropriate method.
